| Dissecting
Microscope |
 |
| |
| A round base is designed for greater stability
& beautiful look. Equipped with joint revolving
arm for moving the magnifying lenses over the stage
allowing the whole stage area to be scanned.
FOCUSABLE BY RACK & PINION. Detachable rests
on either side of the stage provide a steadying
support for hands during fine dissection. Supplied
with high EYE POINT 10x & 20x EYE PIECES is
a wooden box. |
|
|
| Student
Microscope |
 |
| Salient Features |
Body :
Pressure die cast well-balanced body, inclinable
at 90degree
Tube :
Mechanical tube length 160 + 1mm
Nose Piece :
Dust Proof Triple Revolving Nosepiece with positive
click stop.
Focusing :
Separate coarse & highly sensitive fine focusing
knobs.
Stage :
Fixed square stage 120mm x 120mm with two clips.
Condenser :
With revolving disc/Iris diaphragm
Illumination :
Illumination by plano-concave mirror.
Safety Device:
Preset lock prevents damage to valuable slides objectives.
Optics : 10x, 40x/45x, S/L objectives
and 10x, 15x eye pieces.
Packing : With dust Cover in Thermocol
Packing
|
| |
|
|

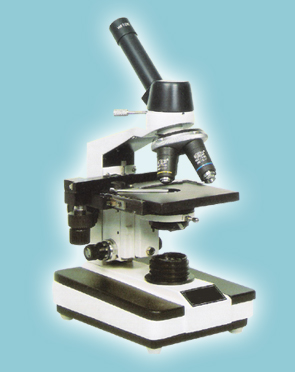

| Pathological
Microscope Monocular |
 |
| |
Viewing Head : Monocular Head
Inclined at 45degree
Frame :
All Aluminum pressure die casted body
Paint
: P.U. Coating in Light Cream Shade
Nose Piece : Dust Proof Quadruple
Revolving Nosepiece
Observation
Head : 360degree rotatable and 45degree
monocular inclined head with all anti-
fungus coated prisms.
Focusing
System : Separate coarse & graduated
fine focusing knobs.
Mechanical
Stage : Low drive co-axial mechanical stage.
Condenser : Bright field
sub stage condenser having 1.2 N.A.
Eyepiece
& Objective : Set of 4x/5x,10x, 40x/45x
and 100x and a paired set of 10x wide
field and 5x (HUY) eye piece.
Illuimination
: 6V, 20W halogen lamp builtin Base &
Plano concave mirror attachment.
(Optional LED Illumination system also available
with battery backup)
|
|
|
![]() |
| Pathological
Microscope Binocular |
 |
| |
Viewing Head : Binocular
Head Inclined at 45degree
Frame
: All Aluminum pressure die casted body
Paint : P.U. Coating in Light
Cream Shade
Nose Piece :
Dust Proof Quadruple revolving Ball Bearing Nosepiece
Observation Head : 360degree
rotatable and 45degree monocular inclined head with
all anti-
fungus coated prisms.
Focusing
System : Separate Coarse & graduated
fine focusing knobs.
Mechanical
Stage : Low drive co-axial mechanical stage.
Condenser : Bright field
sub stage condenser having 1.2 N.A. with Up &
Down Movement.
Eyepiece & Objective
: Set of 4x/5x,10x, 40x/45x and 100x and
a paired set of 10x wide field and 5x (HUY) eye
piece.
Illuimination :
6V, 20W halogen lamp builtin Base & Plano concave
mirror attachment.
(Optional LED Illumination system also available
with battery backup)
|
|
|
| In our
continuous endeavors of better performance, We reserve the right
to modify the physical appearance and / or technical specifications
of the products without any prior notice. |
